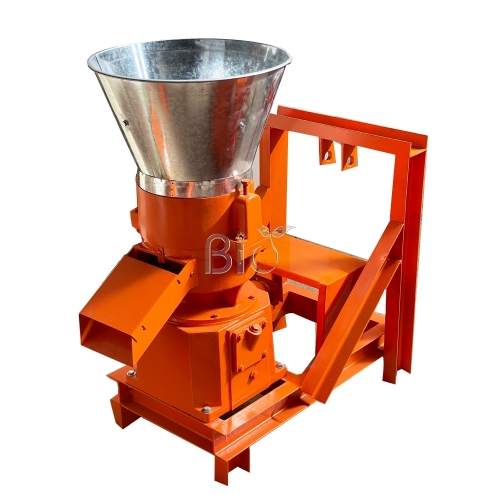

PTO flat die pellet mill for sawdust pellets
small home use pellet machine
CE certificate.
PTO drive
CE certificate.
PTO drive
Description
This type of machine is mainly for crude fiber granulation, such as: wood chips, sawdust, branches, trunks, bark and other wood wastes; Straw, cotton stalks, straw, rice husks and other crop straw; Peanut shells, sunflower seed shells and other types of melon and fruit shells, palms, bamboo powder, pasture and other plant wastes, waste paper and other materials that are difficult to bond and form. The particles pressed out of this product have the characteristics of high density, high combustion value, low moisture and low ash.the heart parts “die” and “rollers” are made by high alloy steel wear resistant material according to different materials, have long lifetime. The transmission parts adopt auto differential, drum juncture or universal joint drive. Little noise, low energy consumption, high efficiency The products are applied to large-sized, medium-sized and small bio-mass energy fuel plants, wood working factory, municipal refuse cleaning plant, organic fertilizer plant, chemical plant, animal feed plant and fishery etc. With low investment, quick effective, no risk, our pellet mills are the most ideal compact shaped equipment.
| Model | Capacity (kg/h) | Require power (hp) | Weight (kg) | Size (mm) |
| MKL150 | 80-120kg/h | 6-15hp/4kw | 80kgs | 570x440x700 |
| MKL210 | 100-150kg/h | 10-18hp/7.5kw | 122kgs | 710x480x720 |
| MKL230 | 150-200kg/h | 18-28hp/11kw | 138kgs | 710x480x750 |
| MKL260 | 200-300kg/h | 28-45hp/15kw | 180kgs | 710x490x840 |
| MKL300 | 300-400kg/h | 45-55hp/22kw | 218kgs | 710x520x920 |
| MKL360 | 350-450kg/h | 45-60hp/22kw | 274kgs | 710x550x970 |
| MKL400 | 400-600kg/h | 50-70hp(30kw) | 420kgs | 770x850x120 |
